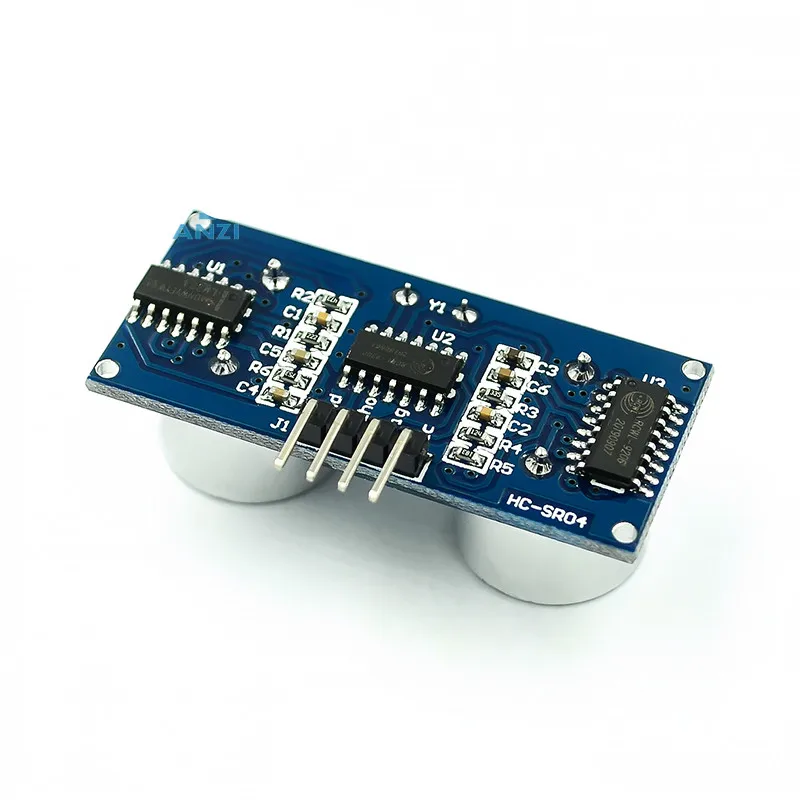

1pcs 2020 Ultrasonic Module HC-SR04 SR04 4Pin HY-SRF05 SRF05 5Pin Distance Measuring Transducer Sensor

advertisement_1]

Value: 1.08 - 0.86

Detecting assortment:
3cm-4M
Greatest in 30 degree angle
Digital brick suitable interface
5VDC electric power offer
Breadboard friendly
Twin transducer
library prepared
Specification:
Operating Voltage: 5V (DC)
Static recent: Significantly less than 2mA.
Output sign: Electric frequency signal, significant stage 5V, lower amount 0V.
Sensor angle: Not much more than 15 degrees.
Detection length: 2cm-450cm.
Substantial precision: Up to .3cm
Performing tempter:-20C___+60C
Body weight: 10g
Dimensions: 45x 21mm (L x W)
SR04Connector 4Pin:
VCC
Echo
OUT
GND
SRF05Connector 5Pin:
VCC
Trig (T)
Echo(R)
OUT
GND
